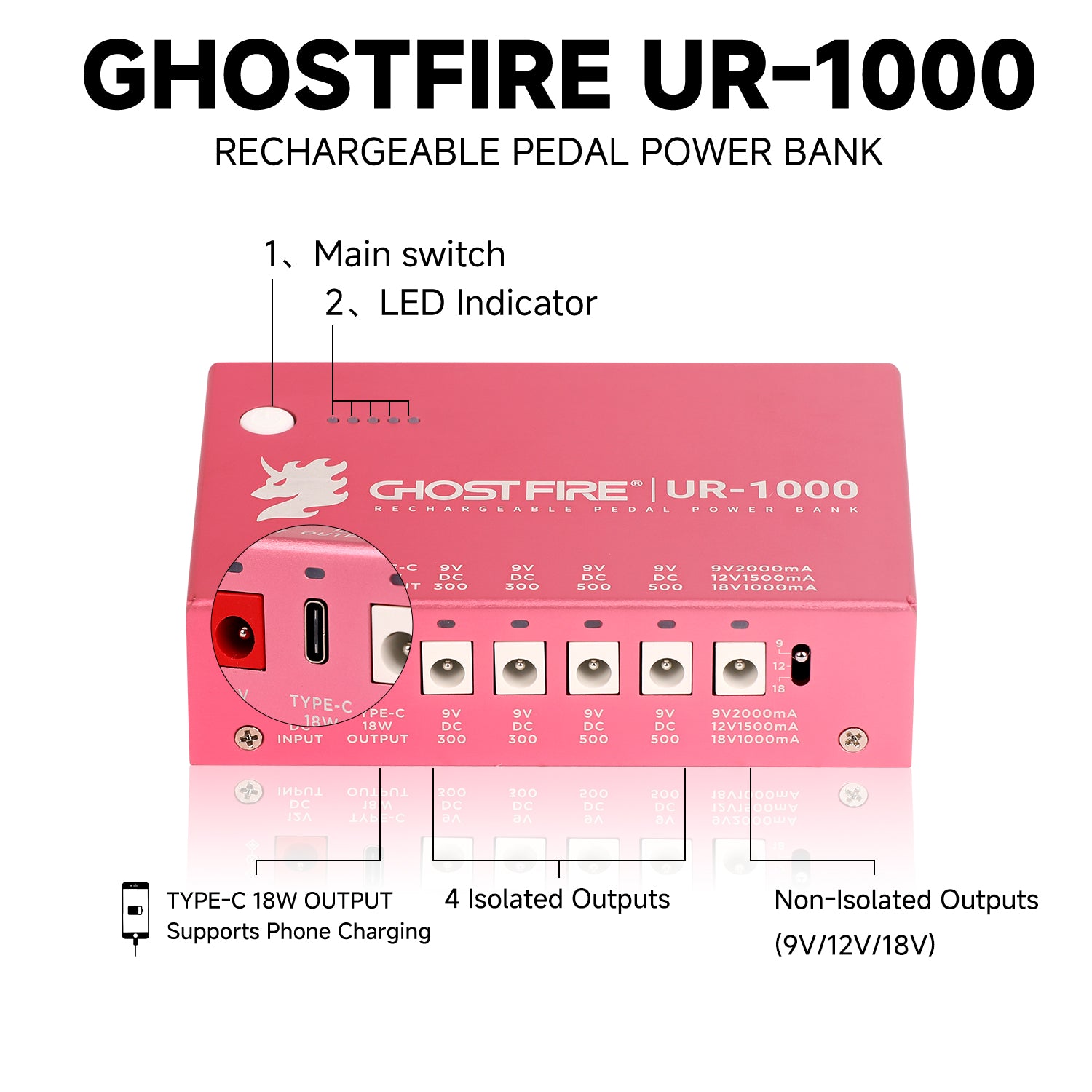

GHOST FIRE UR-1000 Rechargeable Guitar Pedal Power Supply – 9V/12V/18V Isolated Outputs, Built-in Lithium Battery, Short Circuit Protection, Lifetime Warranty
- Free Worldwide Shipping
- 59% OFF Storewide
- Can Be Customized
1. Initial Setup & Charging
-
Connect the included 12V/3A power adapter to the INPUT port to charge the built-in lithium battery.
-
LED Indicator shows charging status (e.g., solid green = fully charged).
2. Power On/Off
-
Toggle the Main Switch to turn the device on/off.
3. Connecting 9V Pedals (Outputs 1-7)
-
Use Outputs 1-5 :
-
9V/300mA each – Ideal for low-current pedals (e.g., tuners, buffers).
-
-
Use Outputs 6-7 :
-
9V/500mA each – Suitable for higher-demand pedals (e.g., digital delays).
-
-
LED Indicators: Green = active; Red = overload (disconnect pedal to auto-reset in ~2 sec).
4. Adjustable Output 8
-
Voltage Selector: Switch between:
-
9V/500mA | 12V/375mA | 18V/250mA.
-
-
Compatibility: Versatile for pedals requiring higher voltages (e.g., EHX Pitch Fork).
5. High-Power Output 9 (Non-Isolated)
-
Voltage Selector: Supports:
-
9V/2A | 12V/1.5A | 18V/1A.
-
-
Use Case: Power-hungry devices (e.g., multi-effects units, modelers).
6. Safety & Troubleshooting
-
Overload Protection: Faulty connections trigger red LED; auto-recovery after ~2 seconds.
7. Power Down
-
Press the Main Switch to turn off the device.
